BASWA Phon
El Enlucido Acústico Continuo Original

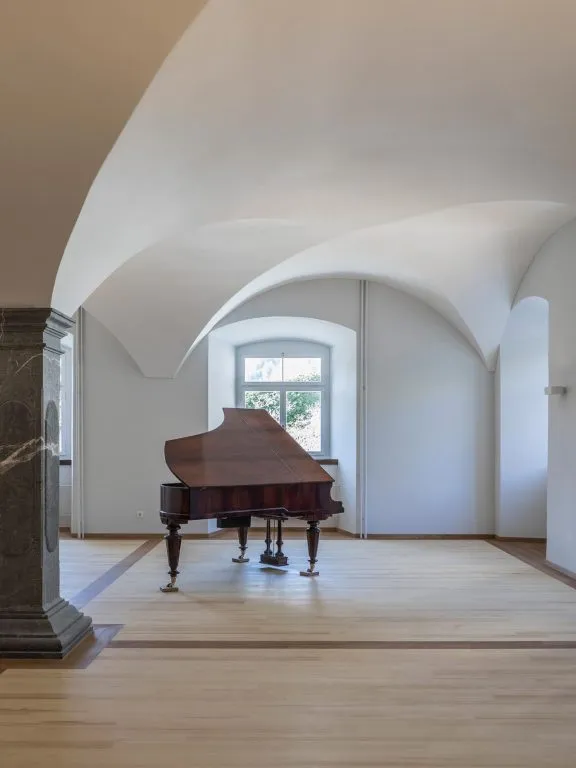

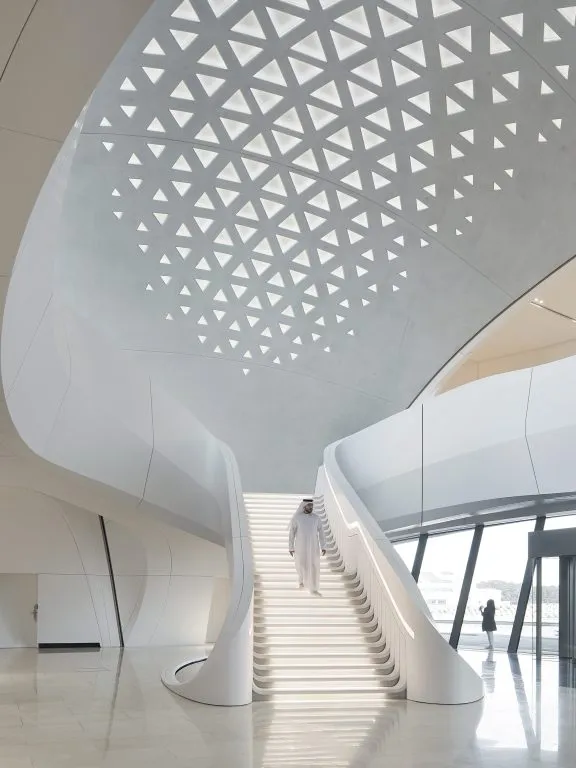

BASWA Phon is a seamless acoustical plaster system applied directly to ceilings and walls to manage room acoustics. With a flexible panel design, BASWA Phon can be used on domes, groin vaults, and complex curves, as well as flat ceilings and walls.
The system captures sound energy as it passes through the microporous, recycled marble finish and is absorbed into the randomly-spun mineral wool layer. Sound energy that would otherwise reflect off a hard surface like concrete, drywall, or glass and accumulate as reverberation, is invisibly converted into heat energy.
Panel thickness, finish texture, and color are all selected to meet the acoustic and visual requirements of a specific space. The sections below will guide you through these variables.
según la norma ASTM C423
según la norma ASTM E84
según ASTM D3273
según CA 01350
por sistema completo
Descripción General del Sistema
BASWA Phon se ha instalado en todo tipo de espacios desde su desarrollo en 1991 y ha establecido el estándar de la industria para la acústica continua. Puede encontrar BASWA Phon en cualquier lugar, desde salas de juntas hasta clubes de campo, museos hasta estudios domésticos, y centros de transporte hasta renovaciones históricas. Ver estudios de caso de BASWA >
Sustrato y Flexibilidad
BASWA Phon follows a stable substrate, like standard drywall, concrete, or existing plaster. With versatile finish options, BASWA Phon suits flat or complex forms that demand high-performance acoustics, conforming to even the most intricate surface design.
Sostenibilidad
BASWA offers sustainable, long-lasting acoustic systems to promote healthy architecture in all spaces. BASWA Phon panels contain 83–86% recycled content, depending on thickness, while system finishes are produced from marble aggregate, a byproduct of stone extraction, and contain 93–95% recycled content. Free of LBC Red List materials.
EPD and HPD documents are available. Download the BASWA sustainability data sheet >

¿Busca documentos técnicos?
Visite nuestra biblioteca de descargas para acceder a una colección completa de literatura de productos, datos técnicos, especificaciones de guía, detalles, guías de sostenibilidad y documentación para presentación.
Obtener Datos Técnicos de BASWASelección del Espesor del Sistema
Variation in BASWA Phon system thickness is solely within the mineral wool layer of the panel, with no other difference in the remainder of the assembly.
Each system thickness has its own acoustical performance profile. For precise performance data, access the BASWA Downloads.
Download Test Data and Guide Specs for each system >

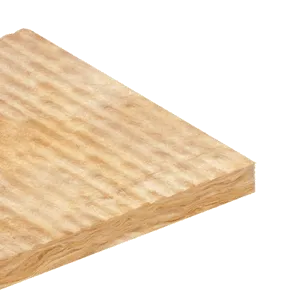

30 mm (1 ³⁄₁₆")
0.80 NRC
Ideal para la absorción de frecuencias medias a altas, o en espacios con limitaciones de profundidad en techos o paredes.

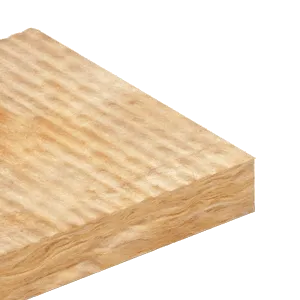

40 mm (1 ½")
0.85 NRC
A mid-range option with absorption into lower-mid frequencies. Most common selection.

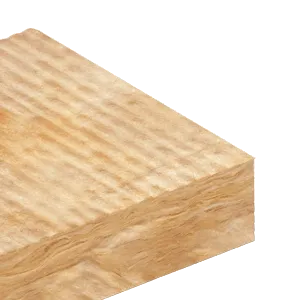

70 mm (2 ¾")
0.90 - 1.00 NRC
Máximo rendimiento en un amplio rango de frecuencias. Recomendado para el control de bajas frecuencias.
¿Necesita algo diferente?
Special order thicknesses may be available upon request. Requires minimum order quantities.
Selección de un acabado
BASWA's recycled marble-aggregate finishes are trowel-applied for smooth surfaces or spray-applied for texturized finishes, available in natural white stone or custom color for a highly customizable design.

The finest grain option with two coats to ensure the smoothest finish. See more >

A fine grain option with two coats to ensure the smoothest finish. See more >

A fine grain option in a single coat to deliver a quicker finish. See more >

The finest grain option in a single coat, for a faster finish. See more >

A spray-applied finish that provides a subtle texture. See more >

Finish materials can be used to create bespoke textures and color gradients, or replicate materials like clay, concrete, or stone with texture and color variations. See more >
Comparing systems?
See sound absorption test data for every BASWA system side by side on one page.
Compare BASWA systemsDescripción general de la instalación
Descripción general del proceso
Los paneles BASWA Phon se adhieren directamente a sustratos estables utilizando un adhesivo a base de yeso, y pueden adaptarse a curvas y geometrías complejas. Los bordes biselados de los paneles pre-revestidos de fábrica forman ranuras en V que se rellenan con los mismos materiales que el pre-revestimiento del panel de perlas de vidrio reciclado. Esto crea una superficie acústicamente monolítica, libre de fijaciones mecánicas, perforaciones o juntas que suelen hacerse visibles con el tiempo.
Los acabados de agregado de mármol reciclado se aplican posteriormente con llana en una o dos capas, en consonancia con el diseño de iluminación y la complejidad geométrica.
La instalación suele durar de 4 a 5 días. Todos los sistemas BASWA son instalados por instaladores locales certificados por BASWA, que se encuentran en todo el mundo.
Más información sobre la instalación del sistema BASWA >
Encuentre un instalador local >
Integración de luminarias sin marco, rociadores y paneles de acceso
BASWA systems easily integrate with trimless fixtures, diffusers, access panels, and other elements. During substrate preparation, all penetrations are roughed-in to accommodate the thickness of the selected system.
Read the guide on seamless fixture integration >
Access the library of details for all BASWA systems >

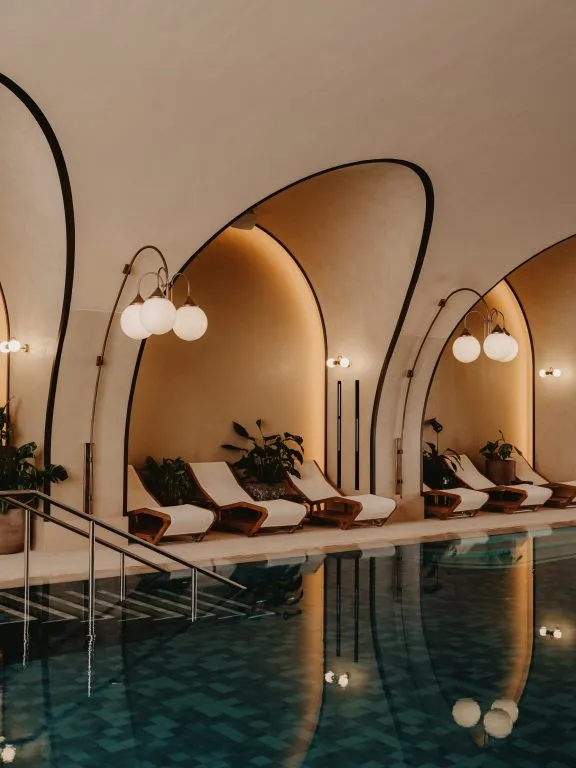

Ambientes Húmedos
Many BASWA systems can be installed in spaces subject to high humidity, such as covered outdoor spaces, pools and natatoriums, kitchens, gyms, and spas.
In these environments, it is important to ensure the dew point is not located on or within the BASWA system.
If you are interested in such an application, BASWA acoustic can help determine which system panel is most appropriate for your space to ensure a long lifespan.
Discuss your space with the BASWA Technical Team >
Altavoces invisibles
Los sistemas BASWA se utilizan a menudo en techos y paredes con altavoces ocultos detrás del acabado en proyectos como salas de cine en casa, vestíbulos y exposiciones permanentes de museos.
Las cajas de los altavoces se enmarcan en el sustrato y los paneles se ajustan alrededor de ellas. Después de instalar una malla para cubrir la caja del altavoz, los acabados BASWA recubren la superficie de manera uniforme.
El resultado es un acabado sin juntas con una absorción acústica de alto rendimiento que integra de forma invisible un sonido amplificado claro y nítido.
